Azure - System Routes, User Defined Routes

 Topology

VM hostname	Private IP	Subnet
SubnetA-VM1	10.0.1.4	SubnetA
SubnetB-Vm1	10.0.2.4	SubnetB
SubnetC-VM1	10.1.1.4	SubnetC
SubnetD-VM1	10.1.2.4	SubnetD
SubnetY-VM1	10.0.3.4	SubnetY

FirstVnet and SecondVnet are in same Azure region.

1.      How are VMs in same Vnet able to talk to each other ?

On SubnetA-VM1,



On SubnetB-Vm1





For demonstration, I have enabled IIS on the VMs.



As seen below, from SubnetA-VM1, we can access

And, from SubnetB-Vm1,  we can access,

To know, how the routing worked here, we need the next hop.

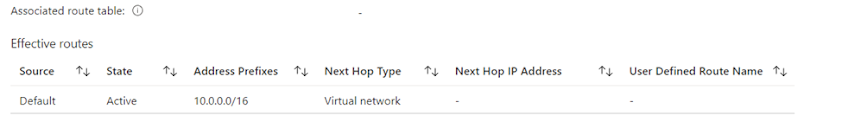

In this case, since there no user defined routes yet, to view the system routes , navigate to

Home-->Virtual Machines-->Networking-->Network Interface

Under Network Interface,  navigate to Effective routes

Azure automatically creates system routes and assigns the routes to each subnet in a virtual network



Source here implies, who created this  route, which is 'Default’ indicating that this is system generated route.



2. Let's assume that the org is expanding and they created a new virtual network SecondVnet. The FirstVnet and SecondVnet are connected to each other via Virtual Network Peering. How is a vm in SubnetC able to talk to a vm in SubnetA ?



Before Vnet Peering

After VnetPeering,



Effective routes for SubnetC-Vm1

As we can see, the second entry in table above, makes the communication work

3. With the above communications working, there is an additional requirement that any traffic that is destined for FirstVnet itself, needs to flow via the SubnetY

1. All traffic within FirstVnet must pass through virtual appliance. The VMs within the same subnet can communicate directly though.
2. Traffic between FirstVnet and SecondVnet must pass through the virtual appliance.
3. No traffic should be allowed between SubnetB and SubnetC. (this can be done via NSG ru les)



In this post, I will just cover 3a, if there are questions for the remaining, will update the scenario



For 3a.

Currently(i.e w/o introduction of virtual appliance), the communication, is working as seen below.

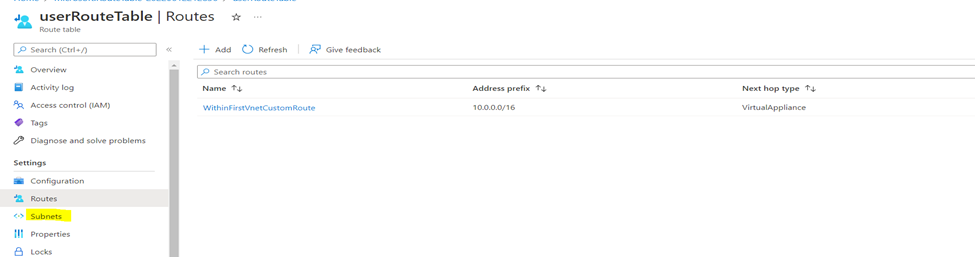

Next, created a route table , and applied it to FirstVnet (10.0.0.0/16)

i.e. For any traffic in FirstVnet, I want all traffic to flow through the Virtual appliance, which is Private Address of SubnetY-VM1



After the above steps, completes, we see,

Next, we associate the route table with a subnet

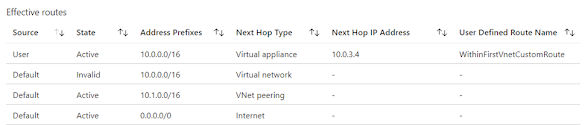

On SubnetA-VM1, we can see the User defined route

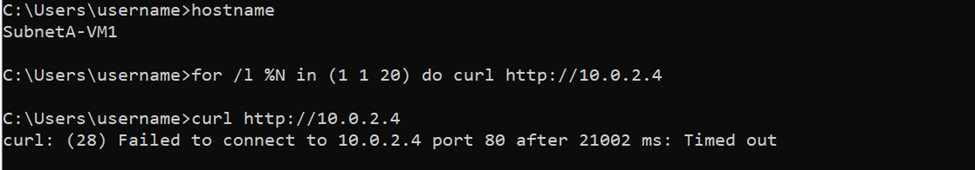

But since the IP Forwarding is not enabled for the SubnetY-VM1, http request fails

After , enabling Ip Forwarding on  SubnetY-VM1 and adding the Routing Role , we see
